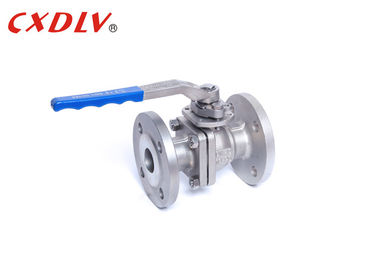

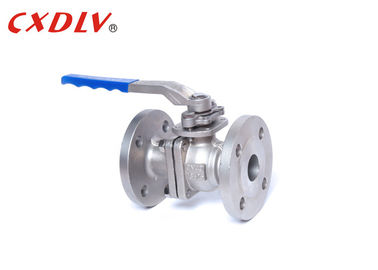

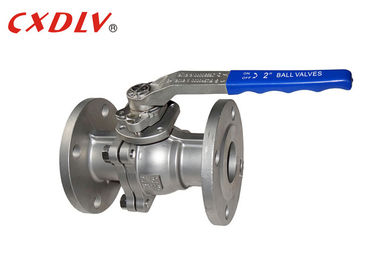

PN16 Stainless Steel Flanged Ball Valve DN50 Handle SS304 SS316 WCB

PN16 Stainless Steel Flanged Ball Valve DN50 Handle SS304 SS316 WCB
PN16 Stainless Steel Flanged Ball Valve DN50 Handle SS304 SS316 WCB PN16 Stainless Steel Flanged Ball Valve DN50 Handle SS304 SS316 WCB PN16 Stainless Steel Flanged Ball Valve DN50 Handle SS304 SS316 WCB

Large Image :  PN16 Stainless Steel Flanged Ball Valve DN50 Handle SS304 SS316 WCB

Product Details:
Place of Origin: China
Brand Name: CXDLV
Certification: CE&ISO
Model Number: Q41F
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Suitable Plywood Cases according to different valves structure
Delivery Time: 5~25 Work Days
Payment Terms: T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram
Supply Ability: 500pcs/Mon
Detailed Product Description
Operation: Handle Body Material: CF8 CF8M WCB
Pressure: PN16 Size: DN15~DN200
Structure: Floating Ball Connection: Double Flange
Medium: Water Oil Gas
High Light:

cf8m ball valve

,

flange end ball valve

PN16 Stainless Steel Flanged Ball Valve DN50 Handle SS304 SS316 WCB



Specifications

GB Handle Oprated Ball Valve

Applicable Standards:
- Design and Manufacturing:GB12237-89

- Connection:JB/T79

- Fireproof Test: API607 4th 1993

- Test and Inspection:GB/T13927-1992

Size Range:
- DN15~DN200

Pressure Rating:
- GB PN16 PN25 PN40
Temperature Range:
- -20°C~185°C



A ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.



PN16 Stainless Steel Flanged Ball Valve DN50 Handle SS304 SS316 WCB 0

Unit:mm
Pressure Size L φE φB φC T f
PN16 15 130 95 65 45 14 2
20 140 105 75 55 14 2
25 150 115 85 65 14 2
32 165 135 100 78 16 2
40 180 145 110 85 16 3
50 200 160 125 100 16 3
65 220 180 145 120 18 3
80 250 195 160 135 20 3
100 280 215 180 155 20 3
125 320 245 210 185 22 3
150 360 280 240 210 24 3
200 400 335 295 265 26 3



 Application

Ball Valves are generally a bi-directional valve intended for on-off applications used in a number of different industries. Some of these include water, oil, gas, chemical, pharmaceutical, mining just to name a few.



 Why choose ball valve?

1. Anti-static performance: a spring is arranged between the ball, the valve stem and the valve body, and the static electricity generated by the switching process can be derived.


2. Since the material such as polytetrafluoroethylene has good self-lubricating property and the friction loss with the spherical body is small, the service life of the pneumatic ball valve is long.


3. The fluid resistance is low, and the pneumatic ball valve is the one with the smallest fluid resistance in all kinds of valve.



4. The valve stem seal is reliable. Because the valve stem only performs the same movement as the lifting movement, the packing seal of the valve stem is not easy to be damaged, and the sealing capacity increases as the pressure of the medium increases.



 Model Selection

 2PC Full Port Floating Ball Valve

  Standard ANSI GB JIS DIN
  Pressure 150LB/300LB PN16/PN25/PN40 10K/20K PN16/PN25/PN40
  Matreial 1) CF8/SS304     2) CF8M/SS316    3) CF3/SS304L    4) CF3M/SS316L    5) WCB
  Model 1) High Platform Model                2) Handle Model



PN16 Stainless Steel Flanged Ball Valve DN50 Handle SS304 SS316 WCB 1
