| MOQ: | 1pc |
| Price: | negotiation |
| Standard Packaging: | Suitable Plywood Cases according to different valves structure |
| Delivery Period: | 5~25 Work Days |
| Payment Method: | T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram |
| Supply Capacity: | 500pcs/Mon |

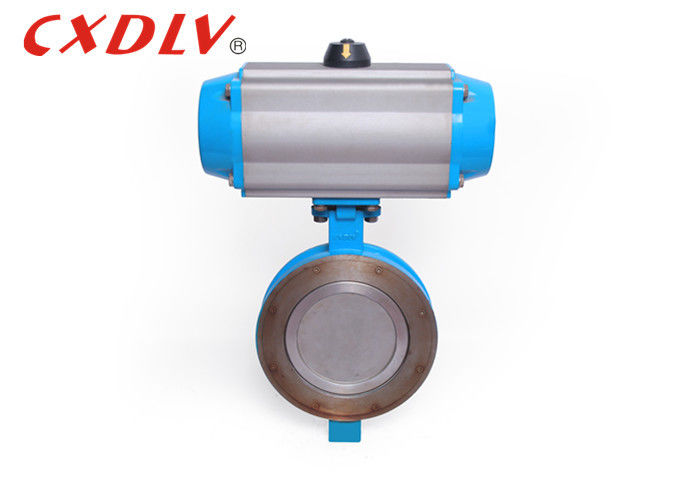

150LB Pancake Wafer Pneumatic Control Butterfly Valve with Seat Stainless Steel Disc 3"
Specifications
Double Eccentic Butterfly Valve
1.Applicable Standards:
* Design and Manufacturing:ASTM A351 304
* Connection:JB/T79-94(2)
* Face to Face Dimension:ANSI/ASME B16.5
* Test and Inspection:API STD598-84
2.Size Range:
- 1/2"~24"
3.Pressure Rating:
- 150LB~600LB
4.Temperature Range:
- -20°C~185°C
Application
High Performance Butterfly Valves are a standard in many industries including heating, ventilating and air conditioning, power generation, hydrocarbon processing, water and waste water treatment, and marine and commercial shipbuilding.
| Pressure | Size | L | C | Y | E | G |
| 150LB | 3" | 49 | 132 | 74 | 73 | 203 |
Strength
1.vertical center line disc
2.Anti-Blow Out Stem
3.Bi-Directional
4.Fire safe Design
5.Low Friction Body Seat
6.Zero Leakage
.
Model Selection
| Standard | ANSI | GB | JIS | DIN |
| Pressure | 150LB/300LB | PN16/PN25/PN40 | 10K/20K | PN16/PN40 |
| Matreial | 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB | |||
| Model | 1) High Platform Model 2) Handle Model | |||
|
|
