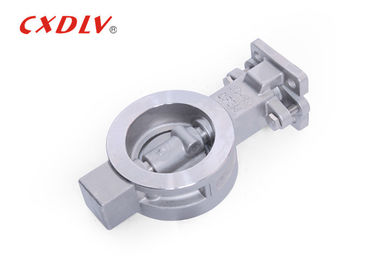

ASTM First Class Electrically Operated Butterfly Valve Dn200 Wafer Butterfly Check Valve
Specifications
1. Applicable Standards:
* Design and Manufacturing:ASTM A351 304
* Connection:JB/T79-94(2)
* Face to Face Dimension:ANSI/ASME B16.5
* Test and Inspection:API STD598-84
2. Size Range:
- 1/2"~24"
3. Pressure Rating:
- 150LB~600LB
4. Temperature Range:
- -20°C~185°C
Application
The butterfly valve, also known as the flap valve, is a simple regulating valve. The butterfly valve that can be used for the switching control of the low-pressure pipeline medium means that the closing member (valve or disc) is a disc that rotates around the valve shaft to achieve opening and closing. a kind of valve. Valves can be used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil, liquid metals, and radioactive media. Mainly cut and throttle on the pipeline. The butterfly valve opening and closing member is a disc-shaped butterfly plate that rotates around its own axis in the valve body to achieve the purpose of opening and closing or adjusting.
SIZE | L | C | Y | E | G |
2" | 43 | 96 | 50 | 38 | 124 |
2 1/2" | 49 | 119 | 48 | 59 | 194 |
3" | 49 | 132 | 74 | 73 | 203 |
4" | 54 | 157 | 97 | 95 | 216 |
5" | 64 | 186 | 111 | 111 | 217 |
6" | 57 | 216 | 146 | 142 | 235 |
8" | 64 | 270 | 194 | 188 | 270 |
10" | 71 | 324 | 243 | 236 | 329 |
12" | 81 | 381 | 289 | 282 | 357 |
Strength
1. It is convenient and quick to open and close, labor saving, small fluid resistance, and can be operated frequently.
2. simple structure, small size, short structure length, small size, light weight, suitable for large diameter valves.
3. can transport mud, the least amount of liquid accumulated in the pipe mouth.
4. under low pressure, can achieve a good seal.
Model Selection
Standard | ANSI | GB | JIS | DIN |
Pressure | 150LB/300LB | PN16/PN25/PN40 | 10K/20K | PN16/PN40 |
Matreial | 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB | |||
Model | 1) High Platform Model 2) Handle Model |
