1pc Handle Wafer Flanged Ball Valve PTFE PPL Seat Italy Ball Valve Normal Pressure

1pc Handle Wafer Flanged Ball Valve PTFE PPL Seat Italy Ball Valve Normal Pressure

MOQ: 1pc
Price: Negotiation
Standard Packaging: Suitable Plywood Cases according to different valves structure
Delivery Period: 5~25 Work Days
Payment Method: T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram
Supply Capacity: 500pcs/Mon
Detail Information
Place of Origin
China
Brand Name
CXDLV
Certification
CE&ISO
Model Number
Q71F
Product Name:
1pc Ball Valve
Valve Material:
Valve Material
Pressure:
PN16
Operation:
Handle
Connection:
Wafer
Model:
Q71F
Highlight:

stainless steel ball valve

,

flange end ball valve

Product Description

1pc Handle Wafer Flanged Ball Valve PTFE PPL Seat Italy Ball Valve Normal Pressure



 General Features

Italy Ball Valve

Applicable Standards:
- Design and Manufacturing : GB / T12237 / 1989

- Connection : JB / T79

- Fireproof Test: GB / T13927 - 1992

Size Range:
- DN15 ~ DN200

 Nominal Pressure:
- Contruction 1.6 ~ 4.0 MPa
Temperature Limit:
- 20 °C ~ 350 °C



Wafer Type ball valves (or called “Italy Super Thin” Type ball valves) are used in the pipeline equipment in the condition of PN1.0~2.5MPa, working temperature of 29~180℃(sealing ring is RPTFE) or 29~180℃(sealing ring is PPL Polyphenylene), to achieve to cut off or connect the medium in the pipeline. The applicable medium, such as water, steamer, oil, Nitric Acid, Acetic Acid, Carbamide, or medium of oxidizability can be applied subject to difference valve material adopted.

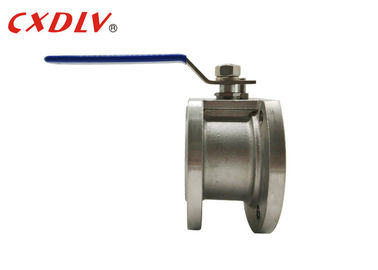

1pc Handle Wafer Flanged Ball Valve PTFE PPL Seat Italy Ball Valve Normal Pressure 0

Unit:mm
Pressure Size L D D1 D2
PN16 15 35 95 65 45
20 38 105 75 55
25 42 115 85 65
32 50 135 100 78
40 62 145 110 85
50 72 160 125 100
65 95 180 140 120
80 118 195 160 135
100 140 215 180 155
125 195 245 210 185
150 225 280 240 210
200 275 335 295 265





 Application

Wafer Ball Valve can be widely used in petroleum, chemical, metallurgy, power station, light industry and other fields to automatically adjust or cut off oil, water, gas and pulp or fibrous fluid.



 Strength

1. Blow out proof stem design

2. Full port design

3. ISO5211 direct mounting pad

4. Flange Standard:GB

5. Various sealing materials and carbon steel options

6. Wafer ball valve structure simple, small size, light weight.



 Model Selection

Wafer ball valve

Model No Working Pressure
/Mpa
Applicable Temperature
/℃
Applicable Medium
Q71F-16P 1.6 PTFE≤150
PPL≤250
Nitrose
Q71F-25P 2.5 Nitrose
Q71F-16Ti 1.6 Oxidizing Corrosive Medium
Q71F-25Ti 2.5 Oxidizing Corrosive Medium

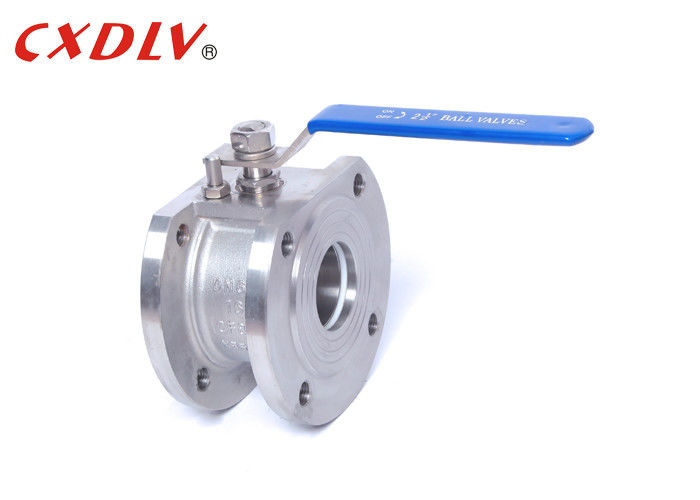

1pc Handle Wafer Flanged Ball Valve PTFE PPL Seat Italy Ball Valve Normal Pressure 1
