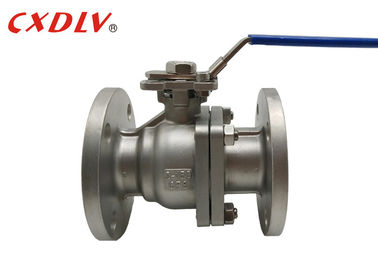

Class 150LB CF8 Stainless Steel Flanged Ball Valve 2 Inch Operating By Handle
Specifications
Casting Floating Ball Valve
Applicable Standards:
- Design and Manufacturing:GB12237-89
- Connection:JB/T79
- Fireproof Test: API607 4th 1993
- Test and Inspection:GB/T13927-1992
Size Range:
- 1/2"~8"
Pressure Rating:
- ASME CL, 150, 300
Temperature Range:
- -20°C~185°C
* Class 150LB 2 Piece Stainless Steel Flange Full Port Ball Valve
Flanged Ball Valves have a different connection type than the other ball valves we carry. Meant to be mated with another flanged connection, th e valves allow for easier cleaning and replacement.
| Pressure | Size | φD | L | φE | φB | φC | T | f | N-φh | H | H1 | W | M | P |
| Class150 | 1/2" | 13 | 108 | 89 | 60.5 | 35 | 11.5 | 1.6 | 4-16 | 48 | 79 | 135 | 9 | 9 |
| 3/4" | 19 | 117 | 98 | 70 | 43 | 11.5 | 1.6 | 4-16 | 53 | 84 | 135 | 9 | 9 | |
| 1" | 25 | 127 | 108 | 79.5 | 51 | 12 | 1.6 | 4-16 | 64 | 95 | 170 | 11 | 11 | |
| 1 1/4" | 32 | 140 | 117 | 89 | 64 | 13 | 1.6 | 4-16 | 71 | 103 | 170 | 11 | 11 | |
| 1 1/2" | 38 | 165 | 127 | 98.5 | 73 | 15 | 1.6 | 4-16 | 76 | 111 | 200 | 14 | 14 | |
| 2" | 51 | 178 | 152 | 120.5 | 92 | 16 | 1.6 | 4-19 | 85 | 120 | 200 | 14 | 14 | |
| 2 1/2" | More Specifications,Contact us freely | |||||||||||||
| 3" | ||||||||||||||
| 4" | ||||||||||||||
| 5" | ||||||||||||||
| 6" | ||||||||||||||
| 8" | ||||||||||||||
Briefly Introduction
The structure of the floating ball valve is floating. Under the action of the medium pressure, the ball can generate a certain displacement and press against the sealing surface at the outlet end to ensure the sealing of the outlet end.
The floating ball valve has a simple structure and good sealing performance, but the load of the ball subjected to the working medium is all transmitted to the outlet sealing ring, so it is necessary to consider whether the sealing ring material can withstand the working load of the spherical medium. This structure is widely used in medium and low pressure ball valves.
The Strength of Ball Valve
1. The fluid resistance is small, and the full-bore ball valve is nearly with no flow resistance.
2. Simple structure, small size and light weight.
3. It has two sealing faces, and the sealing surface material of the ball valve is widely used in various plastics, and has good sealing performance and can achieve complete sealing. It has also been widely used in vacuum systems.
Model Selection
2PC Full Port Floating Ball Valve
| Standard | ANSI | GB | JIS | DIN |
| Pressure | 300LB | PN16/PN25/PN40 | 10K/20K | PN16/PN40 |
| Matreial | 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB | |||
| Model | 1) High Platform Model 2) Handle Model | |||
