| MOQ: | 1pc |
| Price: | negotiation |
| Standard Packaging: | Suitable Plywood Cases according to different valves structure |
| Delivery Period: | 5~25 Work Days |
| Payment Method: | T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram |
| Supply Capacity: | 500pcs/Mon |

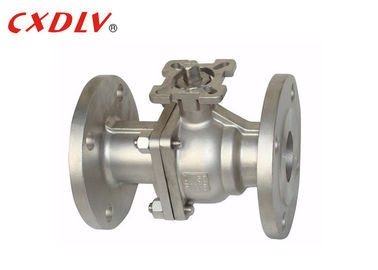

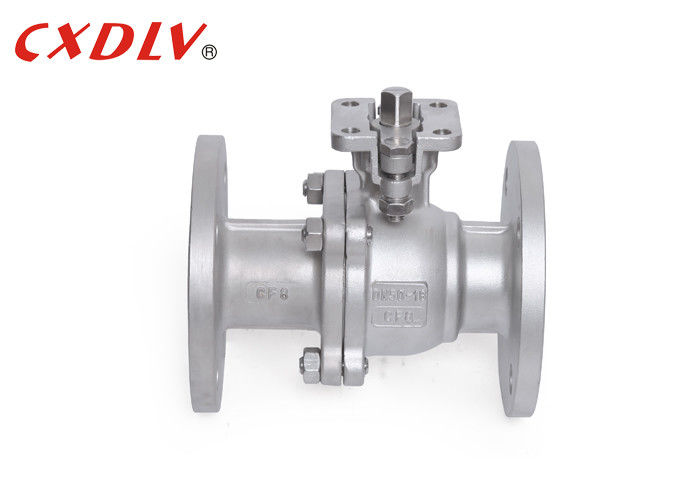

PN16 High Mounting Pad 2PC Full Port Ball Valve DN50 CF8 Floating Valve
Specifications
GB PN16 Ball Valve
Applicable Standards:
- Design and Manufacturing:GB12237-89
- Connection:JB/T79
- Fireproof Test: API607 4th 1993
- Test and Inspection:GB/T13927-1992
Size Range:
- DN15~DN200
Pressure Rating:
- GB PN16 PN25 PN40
Temperature Range:
- -20°C~185°C
Ball valve and gate valve are the same type of valve. The difference is that the opening&closing part is a ball, and the ball rotates around the valve body to achieve the valve opens&closes. The ball valve is mainly used in the pipeline to cut, distribute and change the flow direction of the medium. Flange ball valve standard GB/T21465-2008 "Valve terminology" is defined as: the opening and closing member (sphere) is driven by the valve stem and rotates around the axis of the valve stem.
| PN(Mpa) | DN | L | φE | φB | φC | T | f | N-φh | H | H1 | W | M | P | A1 | A2 | B1 | B2 |
| 1.6 | 15 | 130 | 95 | 65 | 45 | 14 | 2 | 4-14 | 48 | 79 | 135 | 9 | 9 | 6 | 6 | 36 | 42 |
| 20 | 140 | 105 | 75 | 55 | 14 | 2 | 4-14 | 53 | 84 | 135 | 9 | 9 | 6 | 6 | 36 | 42 | |
| 25 | 150 | 115 | 85 | 65 | 14 | 2 | 4-14 | 64 | 95 | 170 | 11 | 11 | 6 | 7 | 42 | 50 | |
| 32 | 165 | 135 | 100 | 78 | 16 | 2 | 4-18 | 71 | 103 | 170 | 11 | 11 | 6 | 7 | 42 | 50 | |
| 40 | 180 | 145 | 110 | 85 | 16 | 3 | 4-18 | 76 | 111 | 200 | 14 | 14 | 7 | 9 | 50 | 70 | |
| 50 | 200 | 160 | 125 | 100 | 16 | 3 | 4-18 | 85 | 120 | 200 | 14 | 14 | 7 | 9 | 50 | 70 | |
| 65 | Contact us freely | ||||||||||||||||
| 80 | |||||||||||||||||
| 100 | |||||||||||||||||
| 125 | |||||||||||||||||
| 150 | |||||||||||||||||
| 200 | |||||||||||||||||
Application
The ball valve is mainly used in the pipeline to cut, distribute and change the flow direction of the medium.
Why choose us?
1. Ball valve,butterfly valve, gate valve,globe valve,check valve and so on have been exported throughout the world.
2. More than 12 years' experiences in this field and CE,ISO,etc. certificated qualification and extreme standard let us keep very competitive in the current market.
3. No MOQ limit. There is ready stock for our regular & hot selling models.
And In time delivery will be ensured. Otherwise please claim compensation when it is delayed.
4. You can depend on high-quality service. We'll treat every email within 2 hours.
(Usually much faster)
5. Free samples can be sent as request.
Model Selection
2PC Full Port Floating Ball Valve
| Standard | ANSI | GB | JIS | DIN |
| Pressure | 150LB/300LB | PN16/PN25/PN40 | 10K/20K | PN16/PN25/PN40 |
| Matreial | 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB | |||
| Model | 1) High Platform Model 2) Handle Model | |||
Video
Video
Video
Video
Video
Video
|
|
