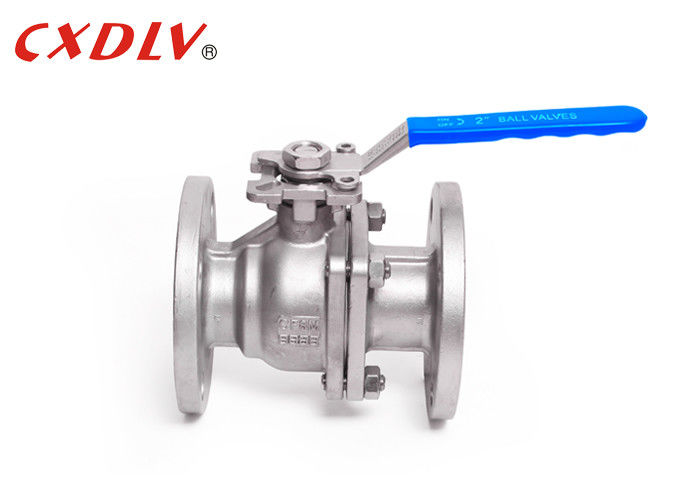

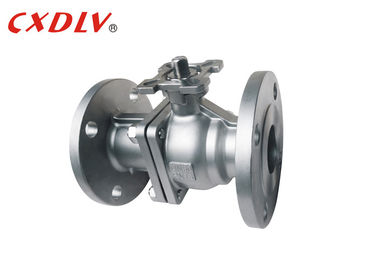

DIN Double Flanged Ball Valve ISO5211 Pad with Handle or Actuator
Specifications
DIN Cast Floating Ball Valve
Applicable Standards:
- Design and Manufacturing:DIN 3357/1,2EN12516-1
- Connection:DIN2542~DIN2545,En1092
- Fireproof Test: API607 4th 1993
- Test and Inspection:DIN3230/3,En12266
Size Range:
- 1/2"~8"
Pressure Rating:
- DIN PN10 PN16 PN25 PN40
Temperature Range:
- -20°C~185°C
| PN(Mpa) | DN | L | φE | φB | φC | T | f | N-φh | H | H1 | W | M | P | A1 | A2 | B1 | B2 |
| 1.6 | 15 | 115 | 95 | 65 | 45 | 16 | 2 | 4-14 | 48 | 79 | 135 | 9 | 9 | 6 | 6 | 36 | 42 |
| 20 | 120 | 105 | 75 | 58 | 18 | 2 | 4-14 | 53 | 84 | 135 | 9 | 9 | 6 | 6 | 36 | 42 | |
| 25 | 125 | 115 | 85 | 68 | 18 | 2 | 4-14 | 64 | 95 | 170 | 11 | 11 | 6 | 7 | 42 | 50 | |
| 32 | 130 | 140 | 100 | 78 | 18 | 2 | 4-18 | 71 | 103 | 170 | 11 | 11 | 6 | 7 | 42 | 50 | |
| 40 | 140 | 150 | 110 | 88 | 18 | 3 | 4-18 | 76 | 111 | 200 | 14 | 14 | 7 | 9 | 50 | 70 | |
| 50 | 150 | 165 | 125 | 102 | 18 | 3 | 4-18 | 85 | 120 | 200 | 14 | 14 | 7 | 9 | 50 | 70 | |
| 65 | 170 | 185 | 145 | 122 | 20 | 3 | 4-18 | 104 | 153 | 300 | 17 | 17 | 9 | 11 | 70 | 102 | |
| 80 | 180 | 200 | 160 | 138 | 20 | 3 | 8-18 | 114 | 163 | 300 | 17 | 17 | 9 | 11 | 70 | 102 | |
| 100 | 190 | 220 | 180 | 158 | 20 | 3 | 8-18 | 140 | 182 | 400 | 17 | 17 | NON | 11 | NON | 102 | |
| 125 | 325 | 250 | 210 | 188 | 22 | 3 | 8-18 | 183 | 260 | 500 | 27 | 27 | 14 | NON | 125 | NON | |
| 150 | 350 | 285 | 240 | 212 | 22 | 3 | 8-22 | 202 | 280 | 800 | 27 | 27 | 14 | NON | 125 | 140 | |
| 200 | 400 | 340 | 295 | 268 | 24 | 3 | 12-22 | 253 | - | 1100 | 27 | 27 | 14 | NON | 125 | 140 |
Application
* Wide range of applications, from small to a few millimeters in diameter, large meters, from high vacuum to high pressure can be applied.
* Ball valves have been widely used in petroleum, chemical, power generation, paper, atomic energy,aviation, rocket and other departments, as well as people's daily lives.
Advantage
1. Fluid resistance, the pipe resistance coefficient with the same length are equal.
2. Simple structure, small size, light weight.
3. Close and reliable valve sealing surface material widely used plastic, sealing, and has been widely used in the vacuum system.
4. Easy to operate, opening and closing rapidly, from fully open to fully closed as long as the rotation 90 °, to facilitate remote control.
5. Easy maintenance, simple ball valve, seals are generally activities, the removal replacement is more convenient.
6. In the fully open or fully closed, sealing surface and the dielectric isolation ball and seat, through the media, will not cause erosion of the valve sealing surface.
Model Selection
DIN 2PC Full Port Floating Ball Valve
| Standard | ANSI | GB | JIS | DIN |
| Pressure | 150LB 300LB | PN16/PN25/PN40 | 10K/20K | PN16/PN25/PN40 |
| Matreial | 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB | |||
| Model | 1) High Platform Model 2) Handle Model | |||
