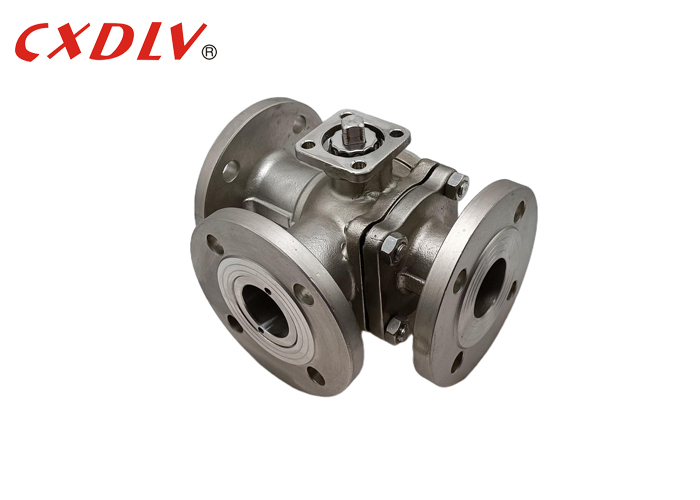

3-Way Full Port Flanged End Diverter Valve PN16 With ISO5211 TOP
Product Details:
| Place of Origin: | China |
| Brand Name: | CXDLV |
| Certification: | CE&ISO9001 |
| Model Number: | Q44F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiation |
| Packaging Details: | Suitable Plywood Cases according to different valves structure |
| Delivery Time: | 5~25 Work Days |
| Payment Terms: | T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram |
| Supply Ability: | 500pcs/Mon |
|
Detail Information |
|||
| Power: | Actuated Operation | Body Material: | CF8M/CF8/WCB |
|---|---|---|---|
| Connection: | Flanged | Structure: | Floating Ball Valve |
| Model: | Full Port | Model No: | Q44F-16P |
Product Description
3-Way Full Port Flanged End Diverter Valve PN16 With ISO5211 TOP
Specifications
Full Port 3 Way Ball Valve
Applicable Standards:
- Design and Manufacturing:GB12237-89
- Connection:HG/T20592
- Test and Inspection:GB/T13927-1992
Size Range:
- DN15 ~ DN200
Pressure Rating:
- PN16
Temperature Range:
- -20°C~185°C
Three-way ball valve is available in T and L versions. The T-type enables three orthogonal pipes to communicate with each other and cut off the third channel to function as a split and merge. The L three-way ball valve type can only connect two pipes that are orthogonal to each other, and can not keep the third pipe connected to each other at the same time, only to distribute.
| Pressure | Size | L | L1 | D | D1 | D2 | Z-φd | ISO5211 φD |
4-φW |
| PN16 | 40 | 220 | 110 | 145 | 110 | 88 | 4-18 | F7-F10 | 4-φ10 |
| 50 | 240 | 120 | 160 | 125 | 102 | 4-18 | F7-F10 | 4-φ10 | |
| 65 | 260 | 130 | 180 | 145 | 122 | 4-18 | F7-F10 | 4-φ10 |
Designed with three ports, 3-way valves allow for the diversion and mixing of flow paths. This configuration is versatile for many applications, but before you buy yourself a 3-way ball valve, you should check which port configuration would be best for your system.
There are two different types of 3-way ball valves configurations. They are either L-type or T-type, which is determined by the shape of the bore in the whole. Each has their own characteristics that make them better than the other for specific uses. In this article, we’ll go over the key differences between L-type and T-type 3-way ball valves which should help you make a more informed decision when searching for a valve to install in your system.
Application
1. Refineries
2. Petrochemical
3. Chemical Process Equipment
4. Process Control Applications
5. Water and Waste applications
6. Pipeline applications
Features
1. Locking handles that lock at 90 degrees and intervals up to 360 degrees
2. Quality investment cast components
3. Antistatic grounding devices
4. ISO-type actuator mounting configurations
5. Available in a variety of special seat materials
