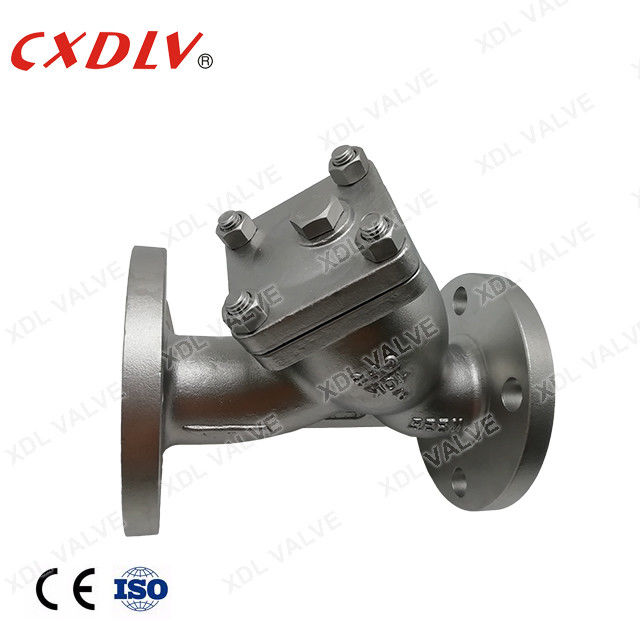

SCS13A Y Strainer Valve 40 Mesh DN50 JIS10K With Flange Connection
Specifications
Size: 1/2"~12"
Material: CF8M/CF8,SS316/SS304,1.4408/1.4301,WCB
Design Standard: ASME B16.34,API608
Flange connection: JIS B2212-B213
Inspection/Testing: JIS B2003,API6D
Application
Y-type filter (water filter) belongs to the series of pipeline coarse filter. It can also be used for filtration of large particles in gas or other medium. It can be installed on the pipeline to remove large solid impurities in the fluid, so that the equipment (including compressor and pump) Etc.) The instrument can work and operate normally to achieve a stable process and ensure safe production. Y-type filter (water filter) can be customized according to customer's specific requirements (special pressure, special caliber). Y-type filter (water filter) has the advantages of simple production, convenient installation and cleaning, and large amount of dirt.
| SIZE | d | L | D | C | G | T | N |
| 1/2" | 15 | 130 | 95 | 70 | 52 | 12 | 4 |
| 3/4" | 20 | 140 | 100 | 75 | 58 | 14 | 4 |
| 1" | 25 | 155 | 125 | 90 | 70 | 14 | 4 |
| 1 1/4" | 32 | 180 | 135 | 100 | 80 | 16 | 4 |
| 1 1/2" | 40 | 200 | 140 | 105 | 85 | 16 | 4 |
| 2" | 50 | 220 | 155 | 120 | 100 | 16 | 4 |
| 2 1/2" | 65 | 250 | 175 | 140 | 120 | 18 | 4 |
| 3" | 80 | 280 | 185 | 150 | 130 | 18 | 8 |
| 4" | 100 | 320 | 210 | 175 | 155 | 18 | 8 |
| 5" | 125 | 350 | 250 | 210 | 185 | 20 | 8 |
| 6" | 150 | 380 | 280 | 240 | 215 | 22 | 8 |
Feature
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,7~60days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
|
|
